JBL Cinema SB130

Details
Variations

2.1 Channel soundbar with wired subwoofer



Extra Bass. Powerful sound.

The JBL Cinema SB130 features 110W system power, Dolby Digital, two full range drivers and comes with a wired subwoofer. Enjoy powerful sound with extra deep bass for movies and music entertainment. It’s Bluetooth-enabled so you can play your favorite music wirelessly from any smartphone, tablet or laptop and features a one cable connection with HDMI ARC that ensures a hassle-free user experience.

Item# JBLSB130BLKAS

General Specifications

Power supply 100 - 240VAC, ~ 50/60Hz
Total speaker power output (Max. @THD 1%) 110W
Soundbar power output (Max. @THD 1%) 2 x 27W
Subwoofer power output (Max. @THD 1%) 56W
Soundbar transducer 2 x 2" full range driver
Subwoofer transducer 4", wired sub
Operating temperature 0°C - 45°C

Audio Specifications

Max SPL 82dB
Frequency response 40Hz - 20kHz
Audio inputs 1 Optical, Bluetooth (USB is for Service only.)

Dimensions

Soundbar dimensions (W x H x D) 900 x 67 x 63(mm) / 35.4" x 2.6" x 2.5"
Subwoofer dimensions (W x H x D) 150 x 320 x 220(mm) / 6" x 12.6" x 8.7"
Soundbar weight 1.5kg
Subwoofer weight 2.8kg
Packaging dimensions (W x H x D) 975 x 170 x 355mm / 38.4" x 6.7" x 14"
Packaging weight (Gross weight) 5.8kg

Control and Connection Specifications

Bluetooth version 4.2
Bluetooth profile A2DP V1.3/AVRCP V1.5
Bluetooth frequency range 2402MHz-2480MHz
Modulation type GFSK, π/4 DQPSK
USB port Type A
USB rating 5VDC/0.5A
Supporting file format mp3, wav
MP3 Codec MPEG 1 Layer 2/3
MPEG 2 Layer 3 Yes
MPEG 2.5 Layer 3 Yes
MP3 sampling rate 16kHz - 48kHz
MP3 bitrate 80kbps - 320kbps
80kbps - 160kbps (MPEG 2.5 Layer 3) Yes
WAV sample rate 16kHz - 48kHz
WAV bitrate Up to 3000kbps

Video Specifications

HDMI Video output (With Audio return channel) 1
HDMI HDCP version 1.4
Click here for a complete list of all specs for this product

Spec Sheet (English)

English 528 KB
  • Soundbar
  • Wired subwoofer
  • Remote control with batteries
  • Power cords (up to 4pcs depending on region SKUs)
  • HDMI cable
  • Wall-mount bracket kit with screws
  • Quick start guide
  • Warranty card
  • Safety sheet

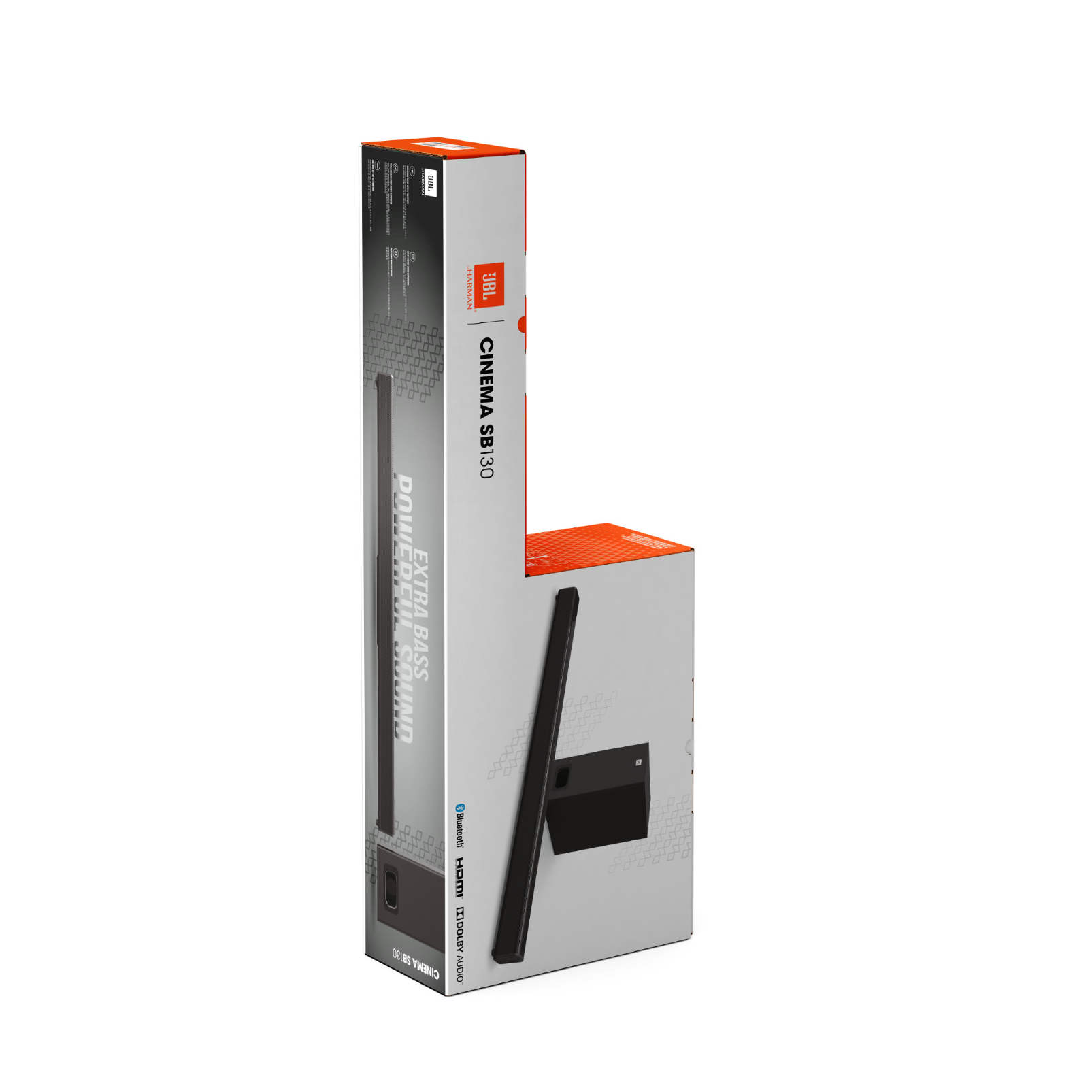

product box
